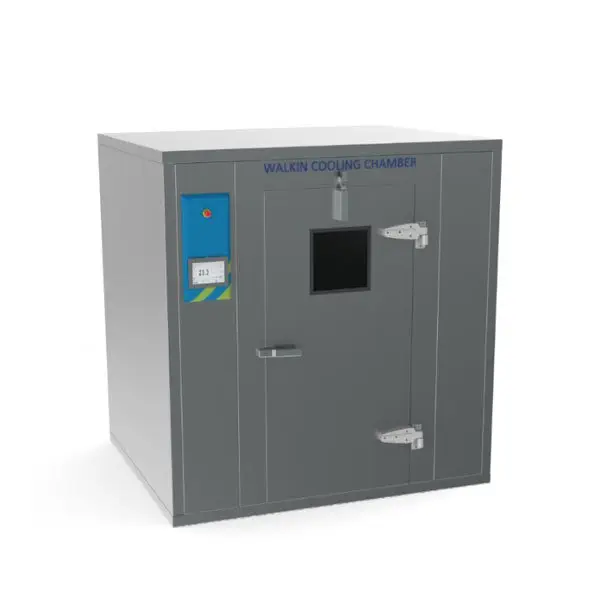

Walk In – Cooling Chamber

Home 9 Product 9 Walk In – Cooling Chamber

Walk In Cooling chambers are known as Pharma Refrigerator, Cooling cabinet etc. and the equipment will maintain the set temperature between 2 to 8⁰C. Atom make Pharma Refrigerator are comply with the CGMP lab standard as per Pharma guidelines. Equipment is available in standard models with different size and dimension from 150 liter to 2000 liter. Custom built chambers also can construct as per the requirement.

Atom make Walk In Cooling Chambers are perfectly designed and are specifically developed to meet FDA/ICH requirements for accurate control and uniformity of temperature. Atom make Walk In Cooling Chambers feature’s various safety, audio visual alarms, 21 CFR part 11 software and a vast range of options and is the most preferred choice for your studies. Each Atom make Stability Chamber’s have been specifically developed to meet the requirements of test laboratories in the pharmaceutical industries.

  • Double walled with 80mm PUF insulated modular panels with easy on-site assembly.
  • SS 304 Interior & Exterior either SS 304 or External Powder Coated G.I.
  • Stainless Steel Trays (Perforated or Mesh type)
  • Observation window – 300 x 300 mm
  • Illuminated working area for clear Internal view.
  • Flooring of Linoleum carpet
  • U-shaped SS tubular heaters.
  • Forced air circulation for uniform temperature.
  • Non Condensing steam injection type humidity system with standby heater option & auto switch overs function for better performance.
  • CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil, Capillary & condenser.
  • Stand by Cooling system’s for Chamber better performance.
  • Complete Operations is driven through PLC with data logging capacity of upto 1000 readings with email facility & SMS facility.
  • High speed Ethernet based communication.
  • All operations through a single 4″ Color Touch HMI Screen with User friendly Graphical orientation.
  • High-quality make temperature sensor for seamless performance.
  • Safety devices for Low & High temperature cut-off settable thermostats & high humidity cut-off device.
  • Audio/Visual alarms for deviations and corrective actions.
  • PU wheels for easy movement
  • Power supply: 230/415 volts 50 Hz main supply. Also available with 60 Hz Cycle.
Each Equipment will have IQ, OQ, PQ along with Operations & Maintenance Manual.

Temperature Range: 2°C to 8°C
Temperature Accuracy: ± 0.5°C
Temperature Uniformity: ± 1°C

  • Atom Webdesk Software.
  • 8 Temperature Scanners
  • Stand by Cooling System with auto switch overs applicable for 430 litre & above models.
  • Door Access system (Numerical or Biometric)
  • Door Access system (Numerical or Biometric)
  • 4 channel or 8 channel Remote alarm system.
  • ETHERNET COMMUNICATION
  • PLC-BASED CONTROL SYSTEM
  • E-MAIL ALERT
  • STANDBY COOLING SYSTEM
  • TOUCH SCREEN DISPLAY
  • COMPLETE RANGE OF ALARMS
    SAFETY
  • TOUCH SCREEN DOOR ACCESS SYSTEM
  • ALARM TRANSMISSION
  • ATOM WEBDESK SOFTWARE
Models Cap. in liter Internal size in mm External size in mm Rack Qty Tray Qty Tray size in mm Load Electrical Load
AS/WICC/400 4000 2000WX1000DX2000H 2160WX1490DX2200H 2 10 730WX625DX30H 2.05 KW
AS/WICC/600 6000 2000WX1500DX2000H 2160WX1990DX2200H 4 20 600WX625DX30H 2.05 KW
AS/WICC/800 8000 2000WX2000DX2000H 2160WX2490DX2200H 4 20 850WX625DX30H 2.75 KW
AS/WICC/1000 10000 2000WX2500DX2000H 2160WX2990DX2200H 6 30 720WX625DX30H 2.75 KW
AS/WICC/1200 12000 2000WX3000DX2000H 2160WX3490DX2200H 6 30 885WX625DX30H 3.75 KW
AS/WICC/1600 16000 2000WX4000DX2000H 2160WX4490DX2200H 8 40 905WX625DX30H 4.95 KW
AS/WICC/2000 20000 2000WX4000DX2500H 2160WX4490DX2700H 8 48 905WX625DX30H 5.95 KW
AS/WICC/2500 25000 2300WX4500DX2500H 2460WX4990DX2700H 10 60 815WX750DX30H 5.95 KW
AS/WICC/3000 30000 4000WX3000DX2500H 4160WX3490DX2700H 12 72 885WX625DX30H 6.75 KW
AS/WICC/4000 40000 4000WX4000DX2500H 4160WX4490DX2700H 16 96 905WX625DX30H 6.75 KW
AS/WICC/5000 50000 4500WX4500DX2500H 4660WX4990DX2700H 20 120 815WX725DX30H 6.75 KW
