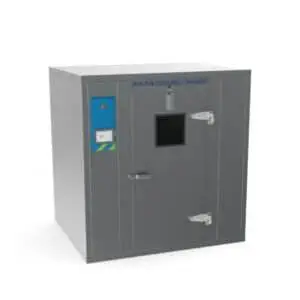

Walk In – Stability (Humidity) Chamber

Home 9 Product 9 Walk In – Stability (Humidity) Chamber

Walk-In Stability chambers are designed to create artificially replicating conditions for the medicines that might be exposed in various environmental conditions. Sometimes it is used to accelerate the effects of exposure to atmospheric conditions that may be adverse in any area where this medicine may store.

Atom make Walk-In Stability(Humidity) Chambers are perfectly designed for the requirements of stability studies and climatic tests. These Walk-In Stability Chambers are specifically developed to meet FDA/ICH stability requirements for accurate control and uniformity of both temperature and humidity.

Atom make Walk-In Stability Chambers feature’s various safety, audio visual alarms, 21 CFR part 11 software and a vast range of options and is the most preferred choice for stability studies. Each Atom make Walk-In Stability Chamber’s have been specifically developed to meet the requirements of test laboratories in the pharmaceutical industries.

  • Double walled with 80mm PUF insulated modular panels with easy on-site assembly.
  • SS 304 Interior & Exterior either SS 304 or External Powder Coated G.I.
  • Stainless Steel Trays (Perforated or Mesh type)
  • Observation window – 300 x 300 mm
  • Illuminated working area for clear Internal view.
  • U-shaped SS tubular heaters.
  • Flooring of Linoleum carpet.
  • Forced air circulation for uniform temperature.
  • System is made up of split type condenser unit in well-ventilated area to avoid throw of hot air in the room
  • Non Condensing steam injection type humidity system with standby heater option & auto switch overs function for better performance.
  • CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
  • Stand by humidity system’s & Cooling system’s.
  • Complete Operations driven through PLC with data logging capacity of upto 1000 readings with email facility & SMS facility.
  • High speed Ethernet based communication.
  • All operations through a single 4″ Color Touch HMI Screen with User friendly Graphical orientation.
  • High-quality make temperature humidity sensor for seamless performance.
  • Safety devices for Low & High temperature cut-off settable thermostats & high humidity cut-off device.
  • Audio/Visual alarms for deviations and corrective actions.
  • PU wheels for easy movement
  • Power supply: 230/415 volts 50 Hz main supply. Also available with 60 Hz Cycle.
Each Equipment will have IQ, OQ, PQ along with Operations & Maintenance Manual.

Temperature Range: 20°C to 60°C
Temperature Accuracy: ± 0.2°C
Temperature Uniformity: ± 1°C
Humidity Range: 40% RH to 95% RH
Humidity Accuracy: ± 2% RH
Humidity Uniformity: ± 3% RH

  • Atom Webdesk Software.
  • 8pt. Temperature & Humidity Scanners
  • Stand by Cooling System with auto switch
  • Door Access system (Numerical or Biometric)
  • Mobile Alert system(SMS alert)
  • 4 channel or 8 channel Remote alarm system.
  • ETHERNET COMMUNICATION
  • PLC-BASED CONTROL SYSTEM
  • E-MAIL ALERT
  • STANDBY HUMIDITY & COOLING SYSTEM
  • TOUCH SCREEN DISPLAY
  • COMPLETE RANGE OF ALARMS
    SAFETY
  • TOUCH SCREEN DOOR ACCESS SYSTEM
  • ALARM TRANSMISSION
  • ATOM WEBDESK SOFTWARE
Models Cap. in liters Internal size in mm External size in mm Rack Qty. Tray Qty. Tray size in mm Electrical Load
AS/WHC/SI400 4000 2000WX1000DX2000H 2160WX1630DX2200H 2 10 730WX625DX30H 4.0 KW
AS/WHC/SI600 6000 2000WX1500DX2000H 2160WX2130DX2200H 4 20 600WX625DX30H 4.25 KW
AS/WHC/SI800 8000 2000WX2000DX2000H 2160WX2630DX2200H 4 20 850WX625DX30H 4.25 KW
AS/WHC/SI1000 10000 2000WX2500DX2000H 2160WX2630DX2200H 6 30 720WX625DX30H 4.25 KW
AS/WHC/SI1200 12000 2000WX3000DX2000H 2160WX2630DX2200H 6 30 885WX625DX30H 4.25 KW
AS/WHC/SI1600 16000 2000WX4000DX2000H 2160WX4630DX2200H 8 40 905WX625DX30H 5.5 KW
AS/WHC/SI2000 20000 2000WX4000DX2500H 2160WX4630DX2700H 8 48 905WX625DX30H 6.0 KW
AS/WHC/SI2500 25000 2300WX4500DX2500H 2460WX5130DX2700H 10 60 815WX750DX30H 6.0 KW
AS/WHC/SI3000 30000 4000WX3000DX2500H 4160WX3630DX2700H 12 72 885WX625DX30H 9.0 KW
AS/WHC/SI4000 40000 4000WX4000DX2500H 4160WX4630DX2700H 16 96 905WX625DX30H 9.0 KW
AS/WHC/SI5000 50000 4500WX4500DX2500H 4660WX5130DX2700H 20 120 815WX725DX30H 12.75 KW
